SPECIFICATIONS
Brand Name: GIRIER
Camera Equipped: No
Certification: CE,FCC,RoHS
Communication method: Wi-Fi
Compatibility: All Compatible
Hign-concerned Chemical: None
Model Number: Smart temperature controller
Specification: EU Plug
State of Assembly: Ready-to-Go
GIRIER Smart Thermostat for Electric/Water Heating/Gas Water
Boiler,WiFi Temperature Controller Works with Alexa Google Home Assistant
Safe, Convenient, Better Home
Main Features:
【Remote Control It Wherever You Are】
Turn on the smart thermostat by your smart phone before go home, get the warmth you want when you back home.Wherever and whenever you are, you can remote control the smart thermostat conveniently.
【5+1+1 Weekly Programming Mode】
Don't need to set the temperature repeatedly,just program the weekly mode in Tuya APP,6 timing periods a day,meeting your different needs.
【Convenient Voice Control】
Compatible with Alexa and Google Home Assistant.Only need simple voice commands to trigger the thermostat,both for on/off and temperature control.
【LED Display and Capacitive Touch Buttons】
Large LED display provide more friendly interface and capacitive touch buttons make the interaction smoother.
【Professional Protection System Designed for Your Safe】
Child lock, high/low temperature protection and professional certifications from CE,RoHS and FCC,UKCA, provide a safer heating system for your home.
【Power-off Protection】
Don't worry about the data and setting will lose after power-off. The smart thermostat will save all your settings safely.
【Share & Group Function】
Support for creating groups and sharing functions to achieve centralized control of multiple thermostats.
SPECIFICATION
Standard：WiFi smart temperature controller
Rated Voltage: 95~240VAC,50~60HZ
Current Load: 5A(Water/Gas Boiler/Water Heating); 16A (Electric Heating)
Sensor: NTC3950,10K (Only electric heating need it)
WiFi Standard:802.11 b/g/n 2.4Ghz Only
Temperature Accuracy:±1℃
Set Temp. Range:5~35℃
Room Temp. Range:5~99℃
Display Temp. Range:5~99℃
Ambient Temp.:0~45℃
Storage Temp. : -10~45℃
Power Consumption: ＜1.5W
Timing Error: ＜1%
Shell Material: PC+ABS(Fireproof)
Installation Box: 86*86mm Square or European 60mm Round Box
Wire Terminals: Wire 2*1.5mm² or 1*1.25mm²
Protection Class: IP20
Buttons: Capacitive Touch Buttons
APP: TuyaSmart/Smart Life
Voice Control: Alexa/Google Home Assistant
Hub Requirement: No
Warm Tips
1.If you have any question after received the parcel,please feel free to contact to our online after-sales and provide us the details of the issue, we will help you solve the problem.
2.Only the Electric heating version need extra sensor, which included in the parcel.
3.The low/high temperature protection can only be set manually.
4.The thermostat will not open until the difference between the temperature and the target temperature reaches the set value of the blind zone temperature.
Create Your Smart Heating System
Create your smart heating system with the WiFi thermostat, including water/electric heating and Water gas boiler heating which meet your different needs. With this smart thermostat, you can make your home always warm and comfortable,convenient your life.

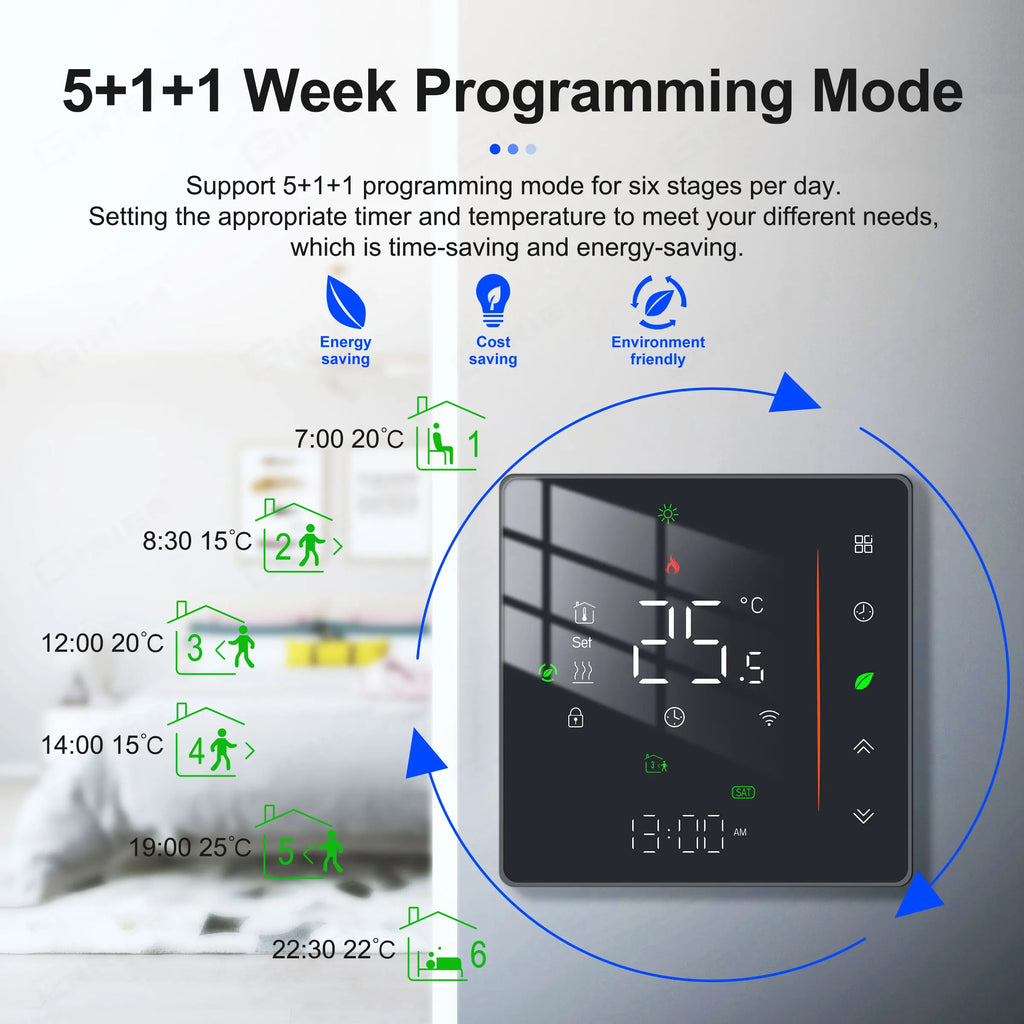

5+1+1 Week Programming Mode
Support 5+1+1 programming mode for six stages per day. Setting the appropriate timer and temperature to meet your different needs, which is time-saving and energy-saving.

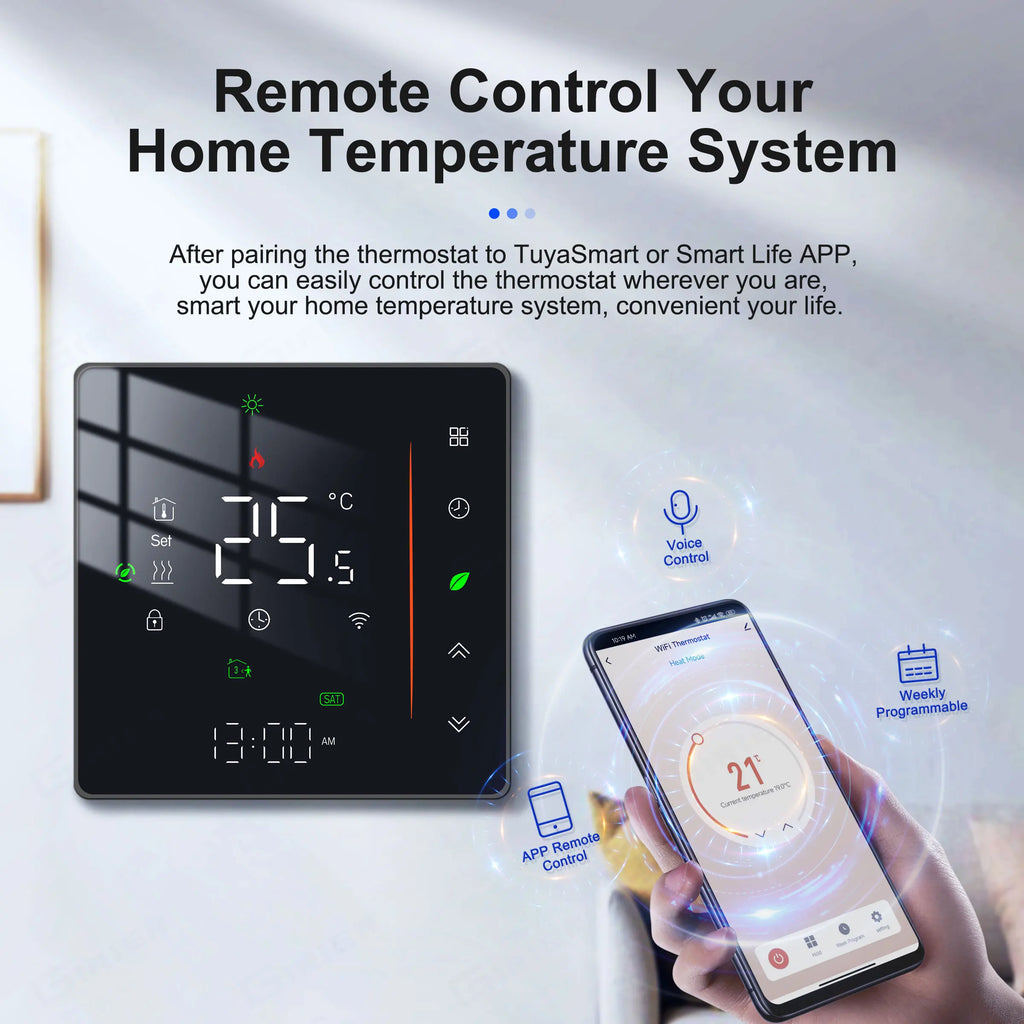

Remote Control Your Home Temperature System
After pairing the thermostat to TuyaSmart or Smart Life APP,you can easily control the thermostat wherever you are,smart your home temperature system, convenient your life.
Convenient Voice Control
Just ask Alexa/Hey Google to trigger the thermostat via simple voice commands as "Alexa,turn on the thermostat", don't need to operate it manually again.
Professional Protection Designed for Your Safety
Child lock, high/low temperature protection and professional certificates from CE,RoHS and FCC provide a safer heating system for your home.

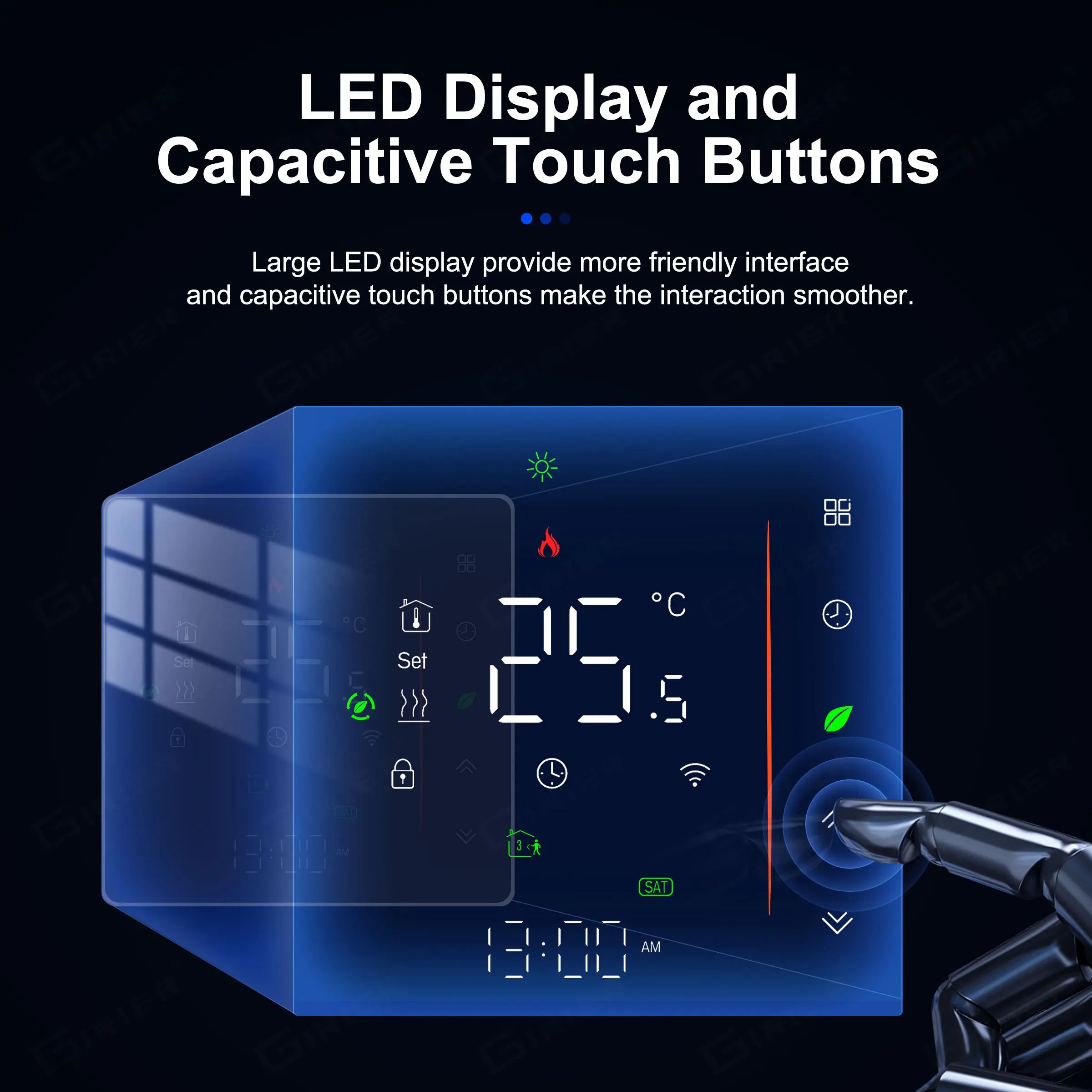

LED Display and Capacitive Touch Buttons
Large LED display provide more friendly interface and capacitive touch buttons make the interaction smoother.
Group Function
Support for creating groups to achieve centralized control of multiple thermostats.
Share Function
Sharing the smart thermostat to your family and friends, enjoying your smart life together.
Package Listing
(Only Electric Floor Heating Need The Sensor)
FAQ
1.Q:What can I do if the display shows nothing after power on?
A:Please check if the terminals between LCD panel and Power Unit Box is loosen.
2.Q: If the thermostat works but without the output?
A:Please try to use a new LCD panel or new Power Unit Box to replace the old one.
3.Q: What can I do if the room temp. is a little bit different from the actual?
A: Please manually adjust the "Temperature Compensation" in item 1 of high senior options.
4.Q: Can I pair the thermostat with other hub?
A:Yes, this is a wifi thermostat which doesn't need zigbee gateway.
5.Q: Can I set the child lock?
A: Yes.
